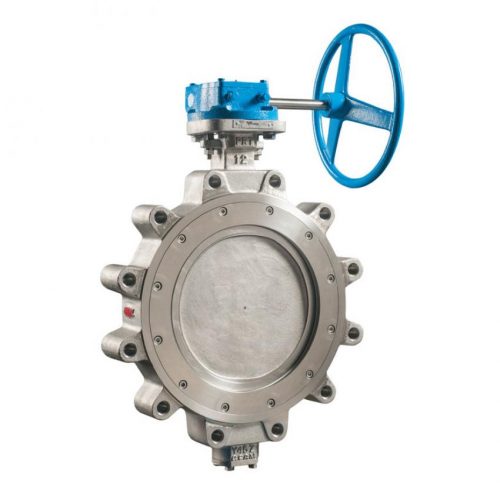

Available in Sizes 2” through 72” Stocking in Sizes 2” through 36” Wafer / Lug / Double Flange / Butt-weld Style Pressure Class: 150 / 300 / 600rface
SPECIFICATIONS:
- Sizes: 2″ – 72″
- Body: WCB A-216 Carbon Steel, CF8M A351 Stainless Steel
- Disc: CF8M A351 Stainless Steel
- Stem: 17-4 PH Stainless Steel
- Seat: PTFE, RTFE, 316 SS, Inconel, Fire Safe, MTFE
- Bearing Material: Graphite Reinforced Teflon, 316 SS
- Packing Material: PTFE Cup & Cone, Graphite
- Butterfly Valve Actuation Options: Worm Gear, Lever, Pneumatic, Electric
- Pressure Ratings: CL.150 – 2-72″; CL. 300 – 2″-48″; CL. 600 – 2″-24″
Note: Many alloys & seat materials are available to accommodate virtually any butterfly valve service condition.
OPTIONAL FEATURES:
- Live loaded packing
- O2 Cleaning
- Steam jacket
- Bonnet extension
- Oil-free cleaning
- Anti-static
- Customized option designs are available upon request
