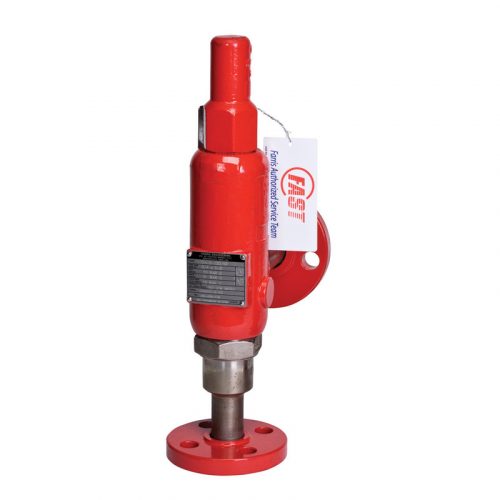

Farris 2700 Process Valve

Metal Seat with optional O-ring Balanced design option Flanged option Optional welding nipple and sanitary connections

Farris 2700 General Specifications:

Size 1/2” x 1” to 1-1/2” x 2-1/2” Orifice Areas C (0.068 sq2) to G Orifice (0.573 sq2) Set Pressure Ranges 15 to 6500

Size 1/2” x 1” to 1-1/2” x 2-1/2” Orifice Areas C (0.068 sq2) to G Orifice (0.573 sq2) Set Pressure Ranges 15 to 6500

Orifice Areas C (0.068 sq2) to G Orifice (0.573 sq2) Set Pressure Ranges 15 to 6500

Set Pressure Ranges 15 to 6500 psig (1.0 to 413 barg) Temperature Ranges -320 to 750°F (-195 to 399°C) Flange Classes 150# – 2500# Suitable for Air, Gas, Vapor, Steam & Liquid Service Materials of Construction Carbon Steel

Temperature Ranges -320 to 750°F (-195 to 399°C) Flange Classes 150# – 2500# Suitable for Air, Gas, Vapor, Steam & Liquid Service Materials of Construction Carbon Steel

Flange Classes 150# – 2500# Suitable for Air, Gas, Vapor, Steam & Liquid Service Materials of Construction Carbon Steel

Materials of Construction: Carbon Steel, Stainless Steel, Low/HHigh-Temperature, Alloy Steels, Monel, Hastelloy C, Duplex, NACE Compliant Materials

Certifications

  • ASME/NB Section VIII and III for Air, Steam and Water
  • CSA B51 (Canada CRN)
  • ISO 9001- 2008
  • PED 97/23/EC (European Pressure Equipment Directive)
  • ATEX 94/9/EC (European Potentially Explosive Atmospheres)
  • CSQL (China)
  • GOST-R (Russian)
  • US Coast Guard
  • Nuclear – 10 CRF 50 Appendix B, NCA-4000, NQA-1 N285.0
  • First Point Assessment Limited
