Technical data Agency Approvals: Area Classification (NEC 500) Models 2007; 5050; 9479: Class I, Division 1, Groups C & D/ T6 Ta = 60°C
- Class II, Division 1, Groups E, F & G/ T6 Ta = 60°C
- Model 9479: Class I, Division 2, Groups A,B, C & D/T4 Ta = 60°C
- Model 5050: Class II, Division 2, Groups E, F & G/T6
- Model 360/366: Without eliminator conduit option
- Class I, Groups B, C & D
- Class II, Groups E, F & G
- With the eliminator conduit option
- Class I, Groups C & D
- Class II, Groups F & G
- Enclosure standards (ANSI/NEMA 250)
- All enclosures Type 4, 4X
- Switches
- Model 2007: V3 mechanical switches, SPDT
- DPDT mechanical switches
- GO® switches
- Model 5050: Pepperl + Fuchs model NJ2-V3-N
- Model 9479: Magnum (hermetically sealed proximity type)
- MagPAC bifurcated switch pack
- Models 360/366: V3 mechanical switches, SPDT
- DPDT mechanical switches
- Magnum (hermetically sealed proximity type)
- Enclosures
- Models 2007; 5050; 9479; 360: Aluminum
- Models 2007;9479; 366: Stainless steel

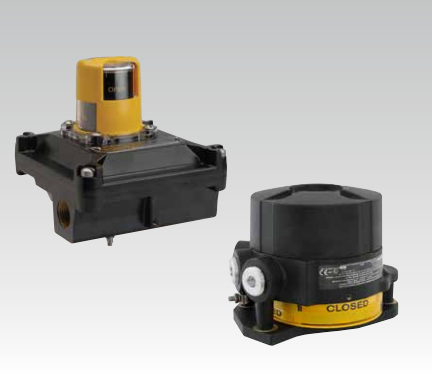

Fully integrated and encapsulated rotary valve position monitors that are certified for use in explosive atmospheres.
Features & Benefits:
- Touch set cams are hand adjustable, spring-loaded, and self-locking providing quick calibration of position switches and sensors.
- Terminal strips are pre-wired and numbered with generous working space for ease of use.
- Strong durable Beacon™ offers 360° visual indication available in a choice of styles and colors.
- Additional conduit for easy field wiring and mounting accessories as standard.
- Standardized mounting pattern for easy adaptation to common bracketry.
- NAMUR shaft output compliant to VDI/ VDE 3845 available.
- Analog position transmitter option.
- Eliminator option for easy integration of external solenoid valve.
- Aluminum enclosures with ultra-low copper content (0.2% maximum) ensure robust performance in corrosive environments.
- Rugged 316 stainless steel enclosures.
